Feature:
◆Built in the RFID module of R2000
◆The stable reading distance could be reach 30M
◆Multiple tagss reading ability
◆High sensitivity to tag
◆Support RSSI indication
◆Waterproof and sunscreen
Application:
JT-9292 could be used in variation area, such as vehicle management, customs management, logistics management and production automatic management, etc.
|
Item No |
|
|
JT-9292A |
RS232 |
|
JT-9292B |
RS232,TCP/IP |
|
JT-9292W |
RS232,WIFI, |
|
JT-9292G |
RS232,GPRS |
|
Performance parameters |
|
|
Working Frequency |
902~928 MHz or 865~868MHz |
|
Protocol |
ISO18000-6C(EPC C1 GEN2) |
|
Chip |
Impinj R2000 |
|
RF power |
0～30dBm(Adjustable) |
|
Software & SDK |
DEMO and C#, VC, Java |
|
Industrial lightning protection |
6000V |
|
Low temperature protection |
Northeast, Northwest extremely cold region, low temperature protection |
|
Reading range |
stable reading range 25 M(Depends on tag & environment) |
|
Tag handling volume |
0-200 tags |
|
Storage space |
1M or 8M Flash save without power supply(customized) |
|
Real-time clock |
without power supply, real-time clock save and working(customized) |
|
Frequency modulation |
hopping or fixed frequency |
|
Input/output port |
Two-way relay output(customized), two-way I/O input(customized) |
|
RSSI |
RSSI numerical test |
|
Antenna gain |
12dBi polarization |
|
Working way |
Buzzer |
|
Power |
12V/3A Adaptor |
|
Ethernet power supply |
POE(customized) |
|
Physical parameters: |
|
|

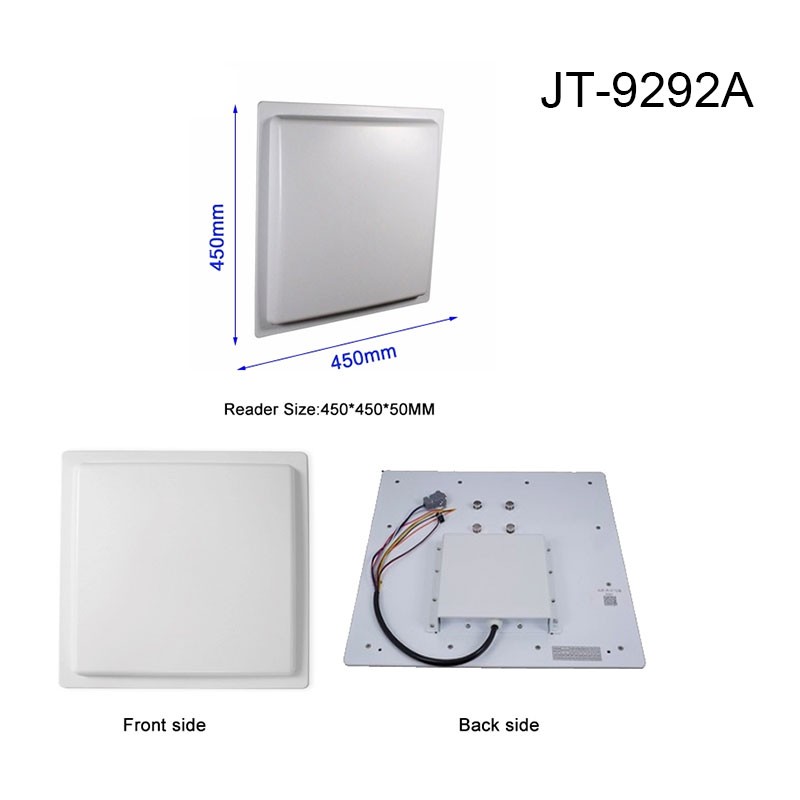

Item size |
450x450x50mm |
|
Package size |
600x480x110mm |
|
Net weight |
5KG |
|
Shell material |
ABS |
|
Working temperature |
-20℃~+65℃ |
|
Storage temperature |
-45℃~+95℃ |
