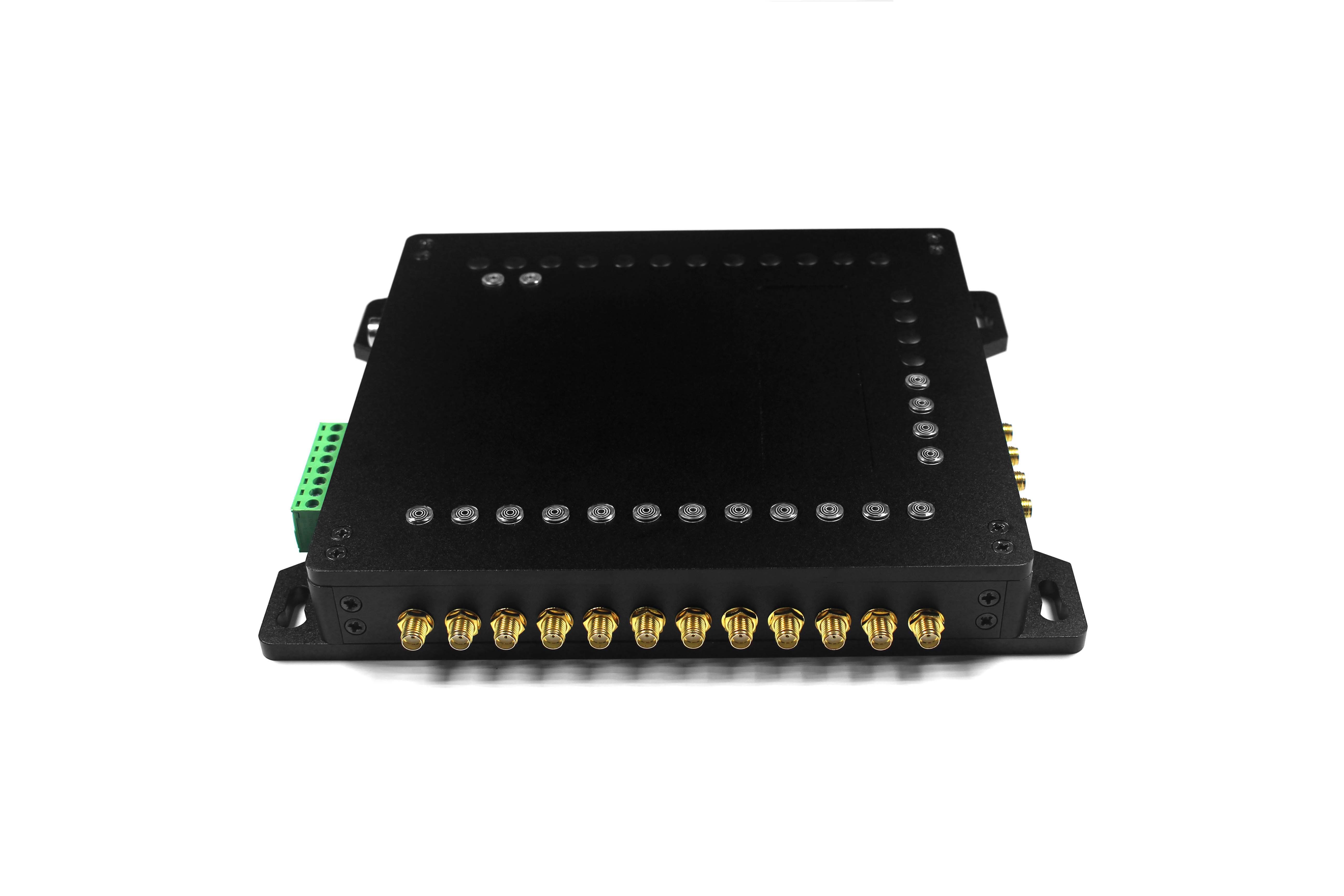

Channel reader R2000 JT-932-16 is our new generation of UHF RFID Reader. It applies FCC ISM (902-928MHz) protocol and ETSI (865.6-867.6MHz) (need to specify when the order is placed).
This device is designed to read ISO18000-6C(EPC C1 GEN2)Tags. Light weight, high receive sensitivity, easy to operation,reliable, stable performance. JT-932-16 provides API function for further development. Meanwhile, it is integrated with LAN interface, management software and database. The process of building a success system can meet all the needs of storage management, logistic, VMI-HUB, industrial production management, identification, access management, aero tunnels management,etc.,
Features
|
Technology parameter |
|
|
Working frequency |
902~928MHz；865~868 MHz |
|
Protocol |
EPC C1 Gen2 ISO18000-6C |
|
RF power |
0~33dBm（adjustable） |
|
Reading distance |
0~30m (Depend on antenna and environment) |
|
Read rate |
＞300times/second |
|
Flash Power off save |
1Mbit (Poweroffsave the data, customized) |
|
Time recording |
Clock chip records card reading time,customized |
|
Label detection |
Support RSSI value detection |
|
Communication parameters |
|
|
RF interface |
16 pcs SMA outer female connector |
|
RS232 connector |
115200 bps (default ) |
|
TCP/IP |
230400 bps (default) |
|
I/O interface |
2 way-road relay output,2 way -road I/O input |
|
Power parameter |
|
|
Equipment power supply |
12VDC / 3A |
|
Working power consumption |
10W（@Maximum output power 33dBm） |
|
Environmental parameters |
|
|
Operating temperature |
-20℃～55℃ |
|
storage temperature |
-30℃～80℃ |
|
Storage humidity |
5%～95%RH No condensation |
|
Physical parameter |
|
|
Size |
220X176X31mm |
|
weight |
about2kg |
|
material |
Aluminum alloy |
I/O Interface definition
|
No |
Name |
Description |
|
1 |
+12V |
+12V output |
|
2 |
GND |
GND ground |
|
3 |
IN1 |
Optical isolation input 1 |
|
4 |
IN2 |
Optical isolation input 2 |
|
5 |
NC1 |
Relay 1 is always open |
|
6 |
COM1 |
Relay 1 common |
|
7 |
NC2 |
Relay 2 normally open |
|
8 |
COM2 |
Relay 2 common |
