JT-T12665 Mat antenna can connect with the UHF fixed reader,can be used at different kinds sports timing system, such as running race,bicycle race etc.

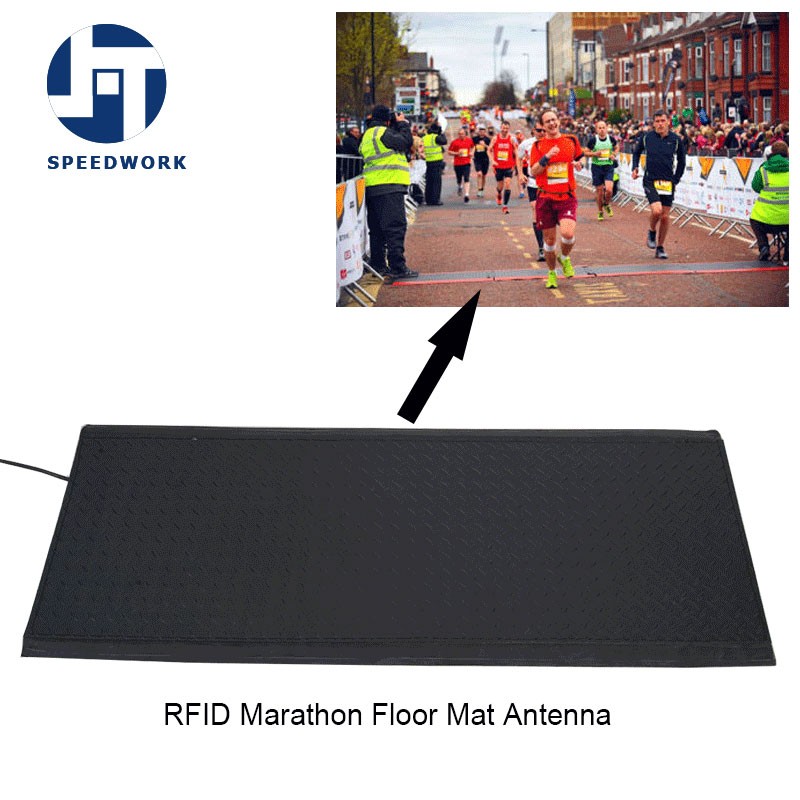

For sports management: runway identification system, marathon start - end and so on.
For access control intelligent management: personnel customs clearance management, items such as access.
Outdoor all-weather work, anti-interference ability.
High gain, read and write speed, read and write distance, high data security, easy to use and so on.
|
Antenna Name |
Marathon Floor Mat Antenna |
|
Model |
JT-T12665 |
|
Working Frequency |
902~928 MHz 865-868 MHz |
|
Antenna Gain |
12 dBi |
|
Protocol |
ISO 18000-6C, EPC global C1Gen 2 |
|
Horizontal Beam width |
Hor: 70,Vert: 60 |
|
VSWR |
Less than 1.3 |
|
Impedance |
50 |
|
Polarization |
Circular |
|
Connector |
TNC-male (Customizable) |
|
Lightning Protection |
GND |
|

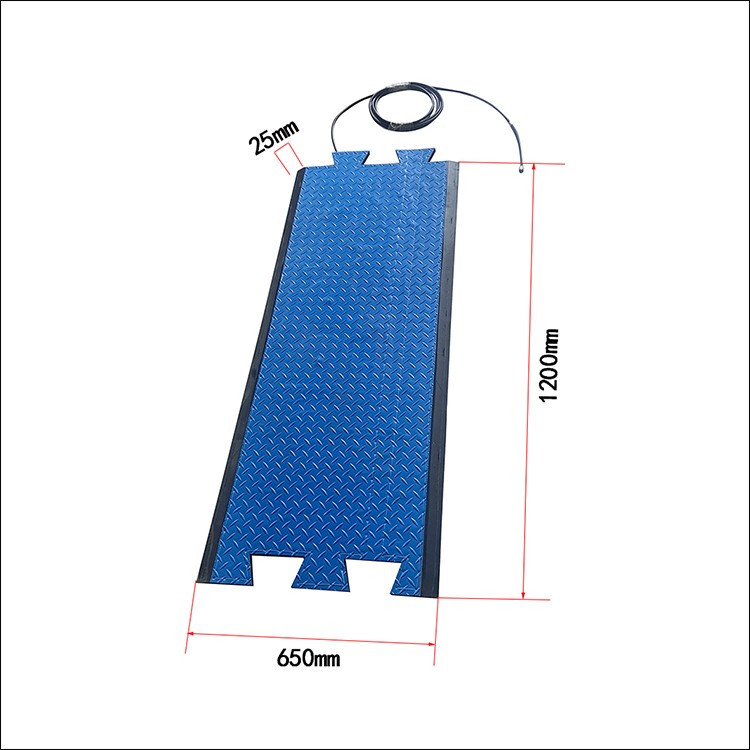

Dimension |
1260*650 mm |
|
Weight(kg) |
7.8 kg |
|
Reflector Material |
Aluminum alloy |
|
Radome Material |
ABS |
|
Operating Temperature |
-40~80℃ |
|
Cable Length |
3 m |
|
Cable Type |
50-7 |
|
Waterproof rating |
IP67 |
>>The Schematic Diagram
