HF RFID Module

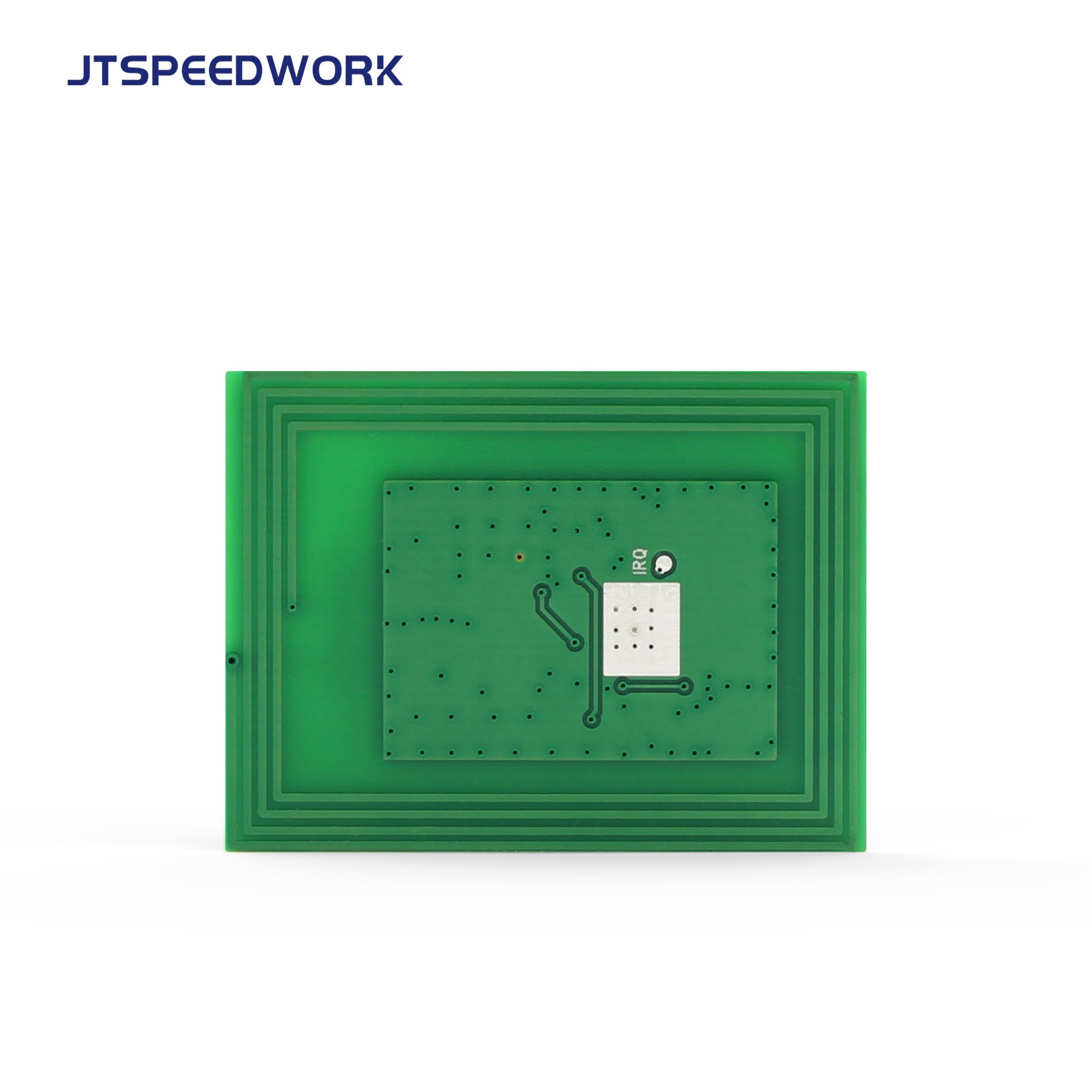

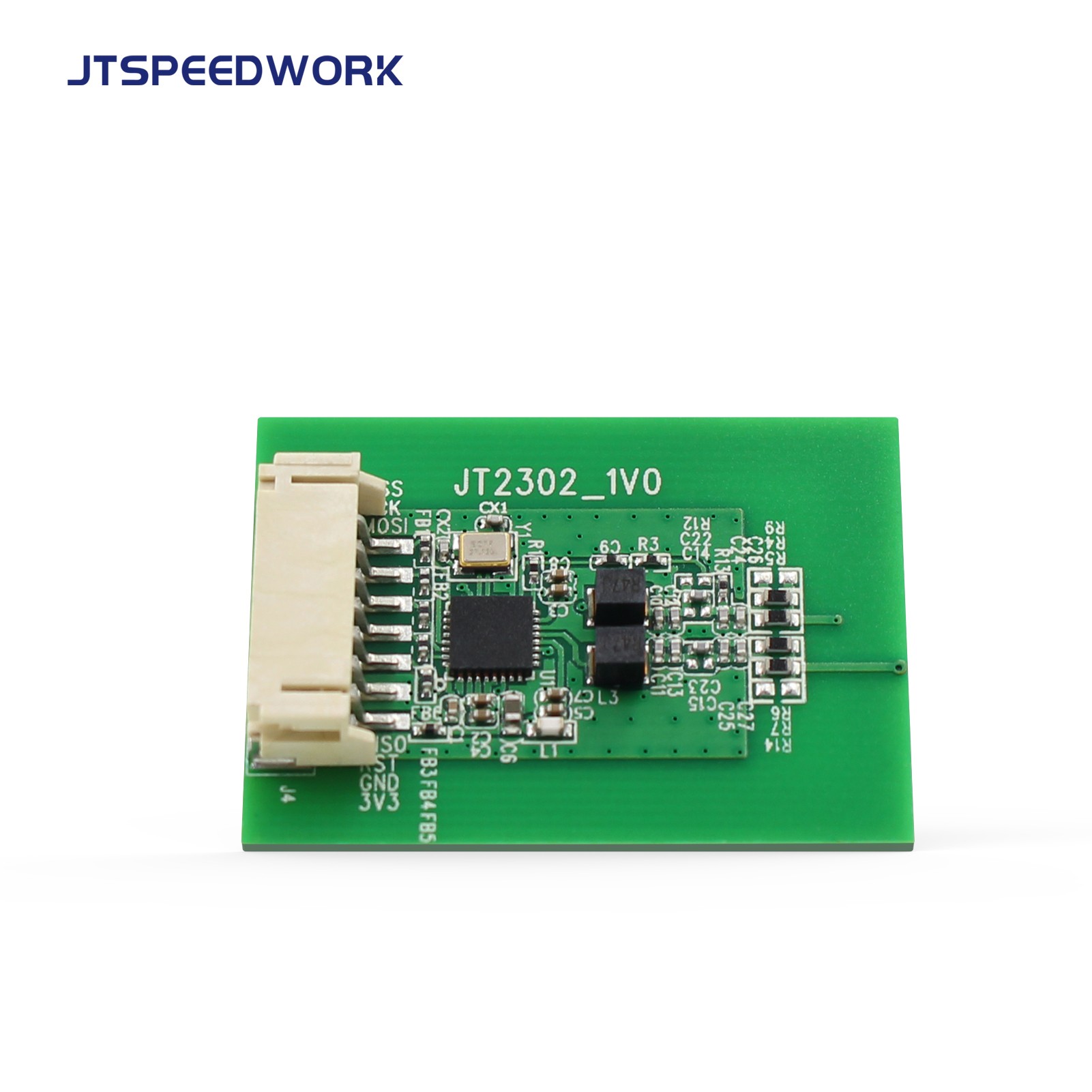

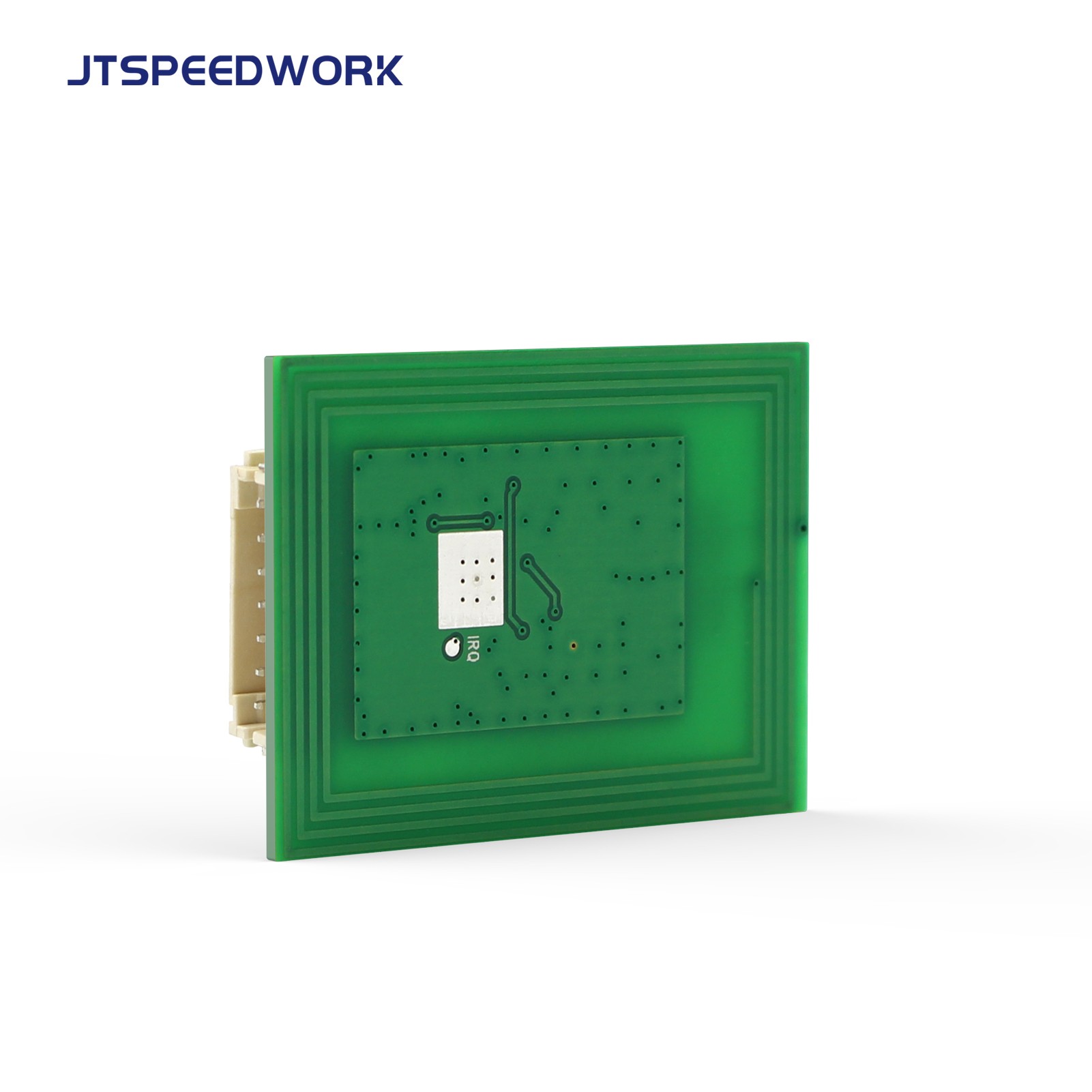

Name: JT-2302A 13.56MHz RFID Module ISO14443A ISO15693 Protocol
Availability: InStock

Home HF RFID 13.56MHz HF RFID Module

JT-2302A 13.56MHz RFID Module ISO14443A ISO15693 Protocol

Reading distance : 0-3cm;

Working frequency : 13.56MHz;

Support ISO14443A ISO15693 protocol.

Inquire Now

JT-2302A

HF RFID Module

JT-2302A is a professional-grade,high-performance HF integrated module.The module is designed and developed based on the ISO14443A protocol.It adopts the integrated design of the module and antenna,which is convenient for users to integrate quickly. The module supports Mifare 1 IC card and compatible ISO14443A and ISO 15693 protocol card operation.Identify the IC and read the specified data block. When the lC card is close to the antenna of the module,the module will read the specified data block.The module adopts UART 3.3V TTL signal interface,DCV power supply.

Item No.	JT-2302A
Power Supply		User Environment
Operate voltage	DC 3.3V	Operating Temp.	-20 ℃ to 60 ℃
Working current	100mA	Storage Temp.	-30 ℃ to 70℃
Stand-by current	40mA	Humidity	5-90% non-condensing (+25° C )

RFID parameters		Physical parameters
Frequency		Dimensions	40(L)*30(W)mm
13.56MHz		Net weight	Around 12g
Protocol
ISO 14443A, ISO 15693		Interface
Reading distance		NSS	SPI-NSS
0-3cm (relate to tag and enviroment)		SCK	SPI-SCKS
Communication interface		MOSI	SPI-MOSI
SPI		RST	Reset
RS32 baud rate		GND	Ground
115200 bps noparity,8 data bits,1 stop bit		3V3	Power 3.3V
		Datasheet (download link)
