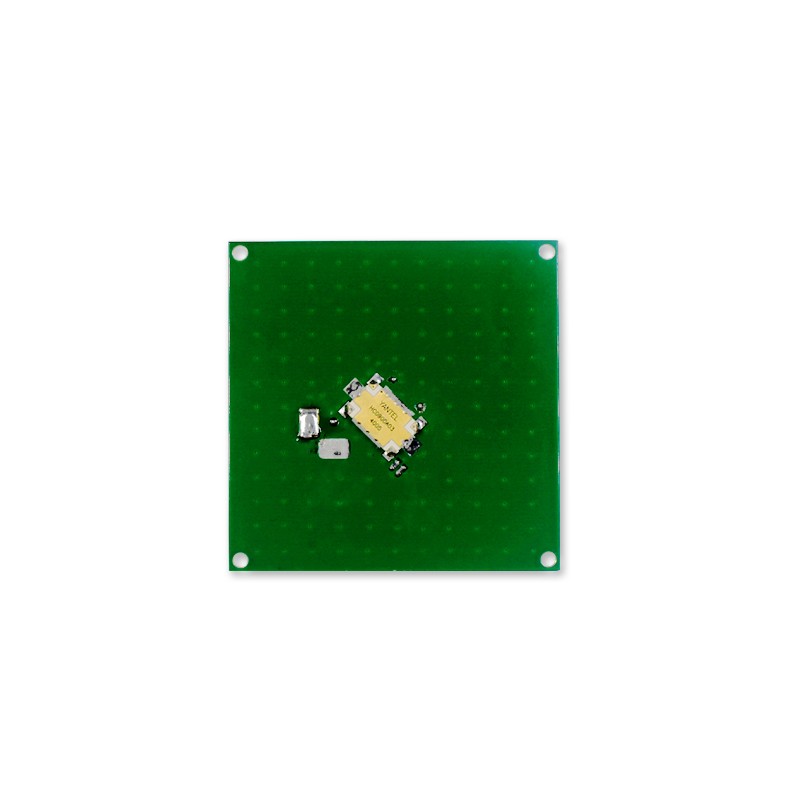

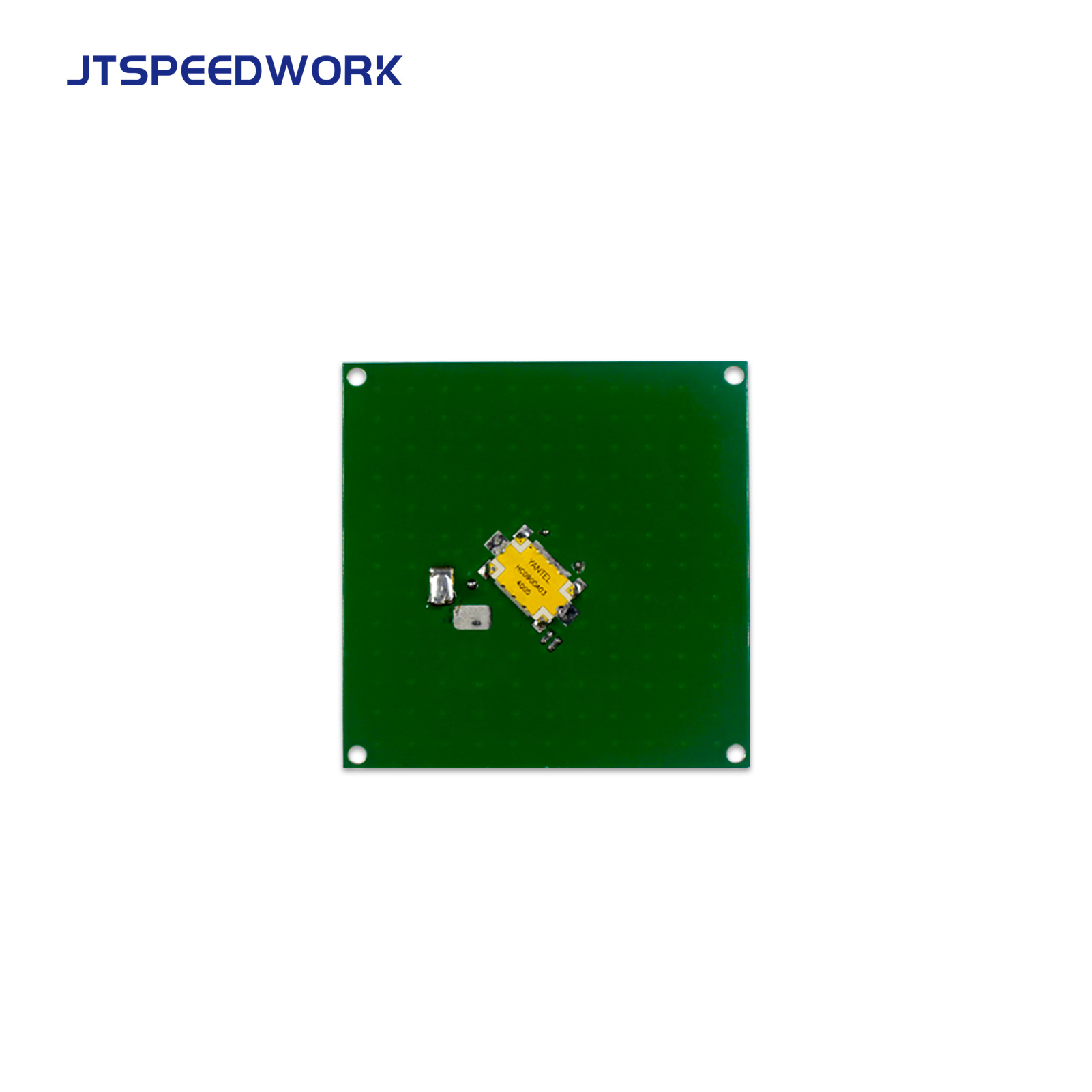

JT-T0060 4dBi UHF RFID Ceramic Antenna 860-960MHz RHCP Circular Polarization Customizable Connector
JTSPEEDWORK JT-T0060 is a 4dBi UHF RFID ceramic antenna with 860-960MHz, RHCP circular polarization and ≤1.5 VSWR. It features compact size, stable performance and customizable connectors for diverse RFID applications.
Item No :
JT-T0060Color :
White and greenAntenna gain :
4dBi circularWorking frequency :
EU:865-868MHz | US:902-928MHz| Item No. | JT-T0060 | |||
| Physical parameters | Antenna gain | |||

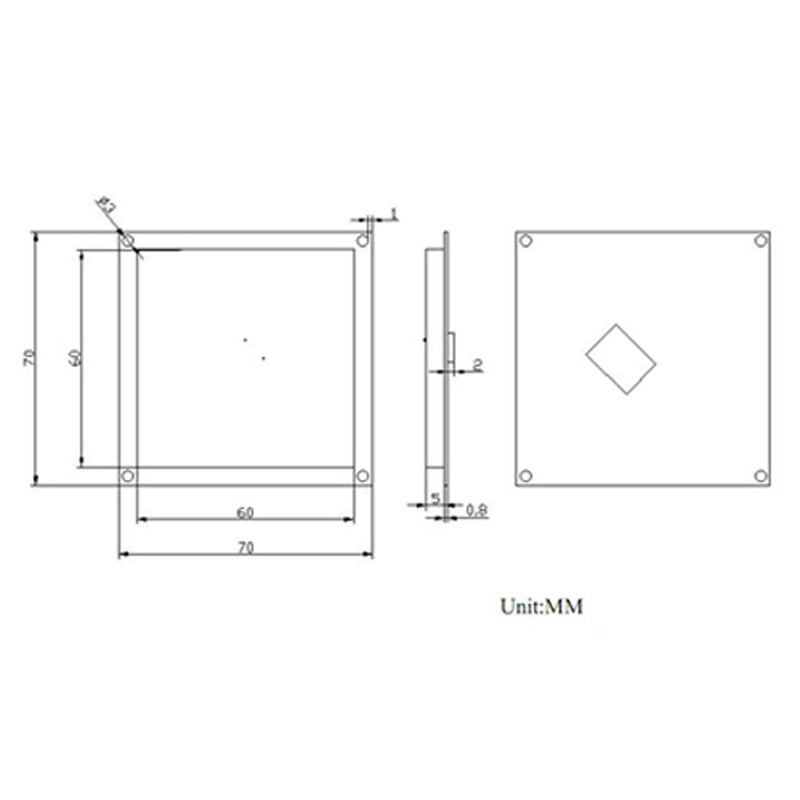

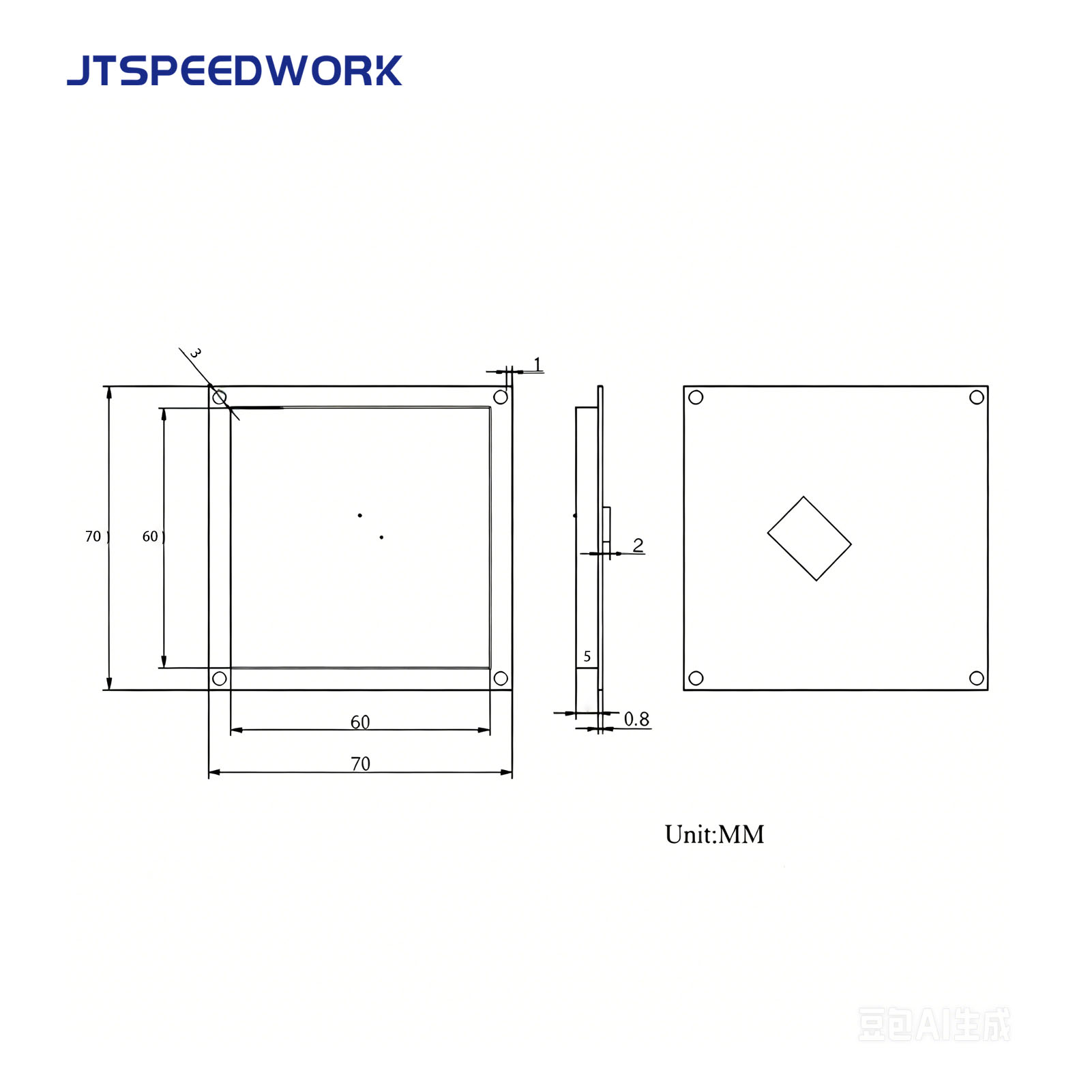

| Ceramic size | 60*60*4mm | 4dBi circularly polarized | ||
| PCB board size | 70*70*1mm | |||
| Connector | V.S.W.R | |||
| SMA,IPEX,TNC,MMCX (customizable) | <=1.5 | |||
| Working temperature | Impedance(Ω) | |||
| -30℃~+ 70℃ | 50ohm | |||
Detailed information and PDF
