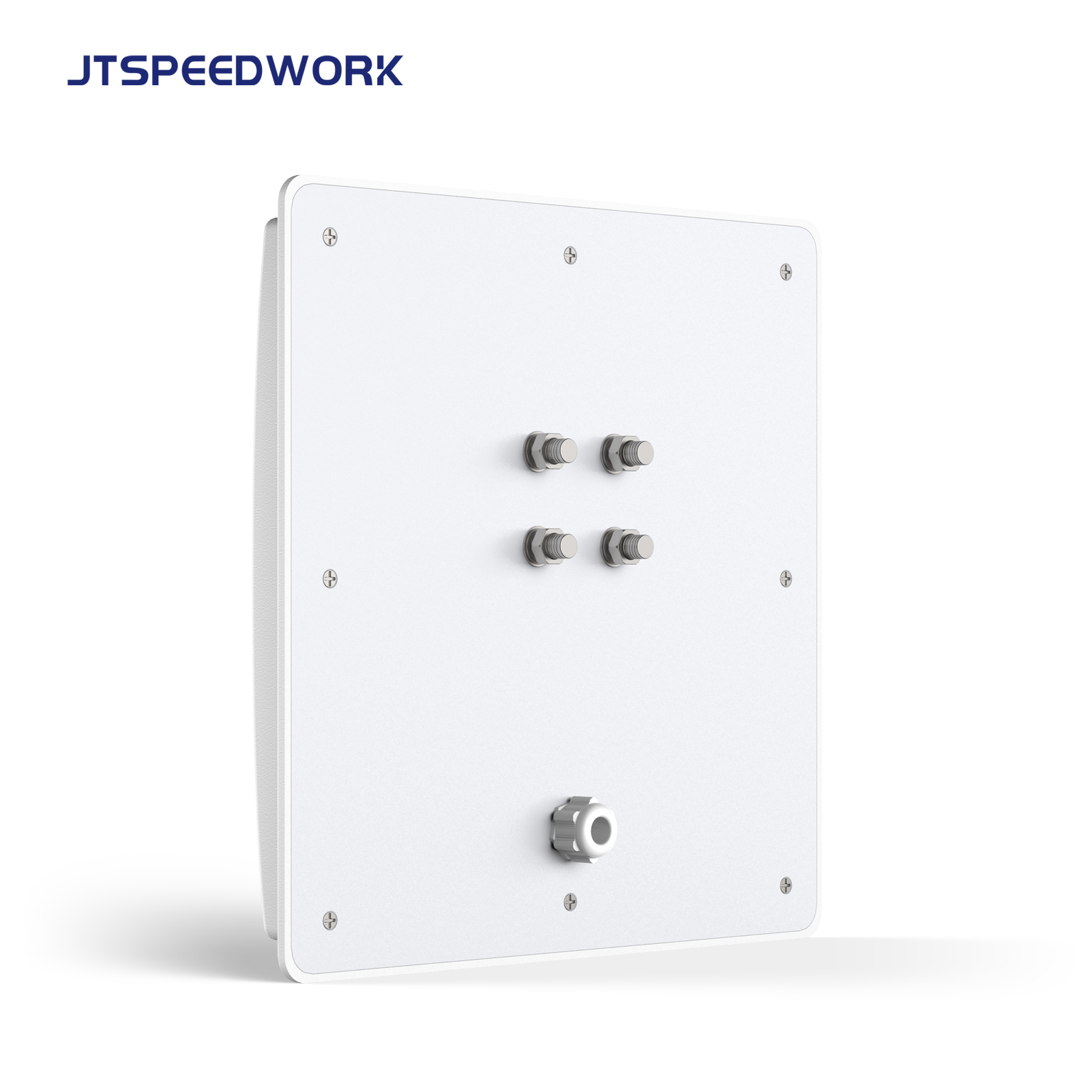

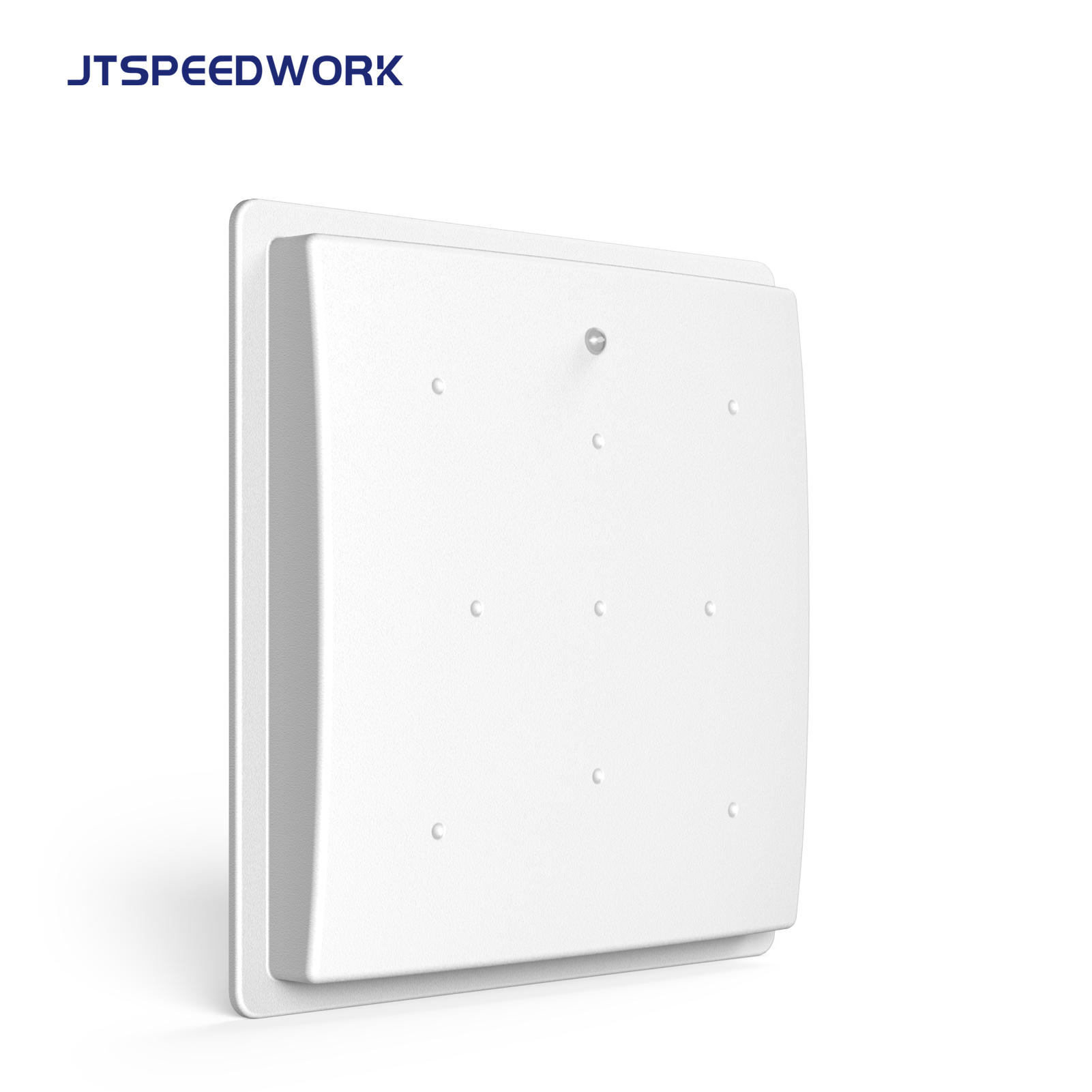

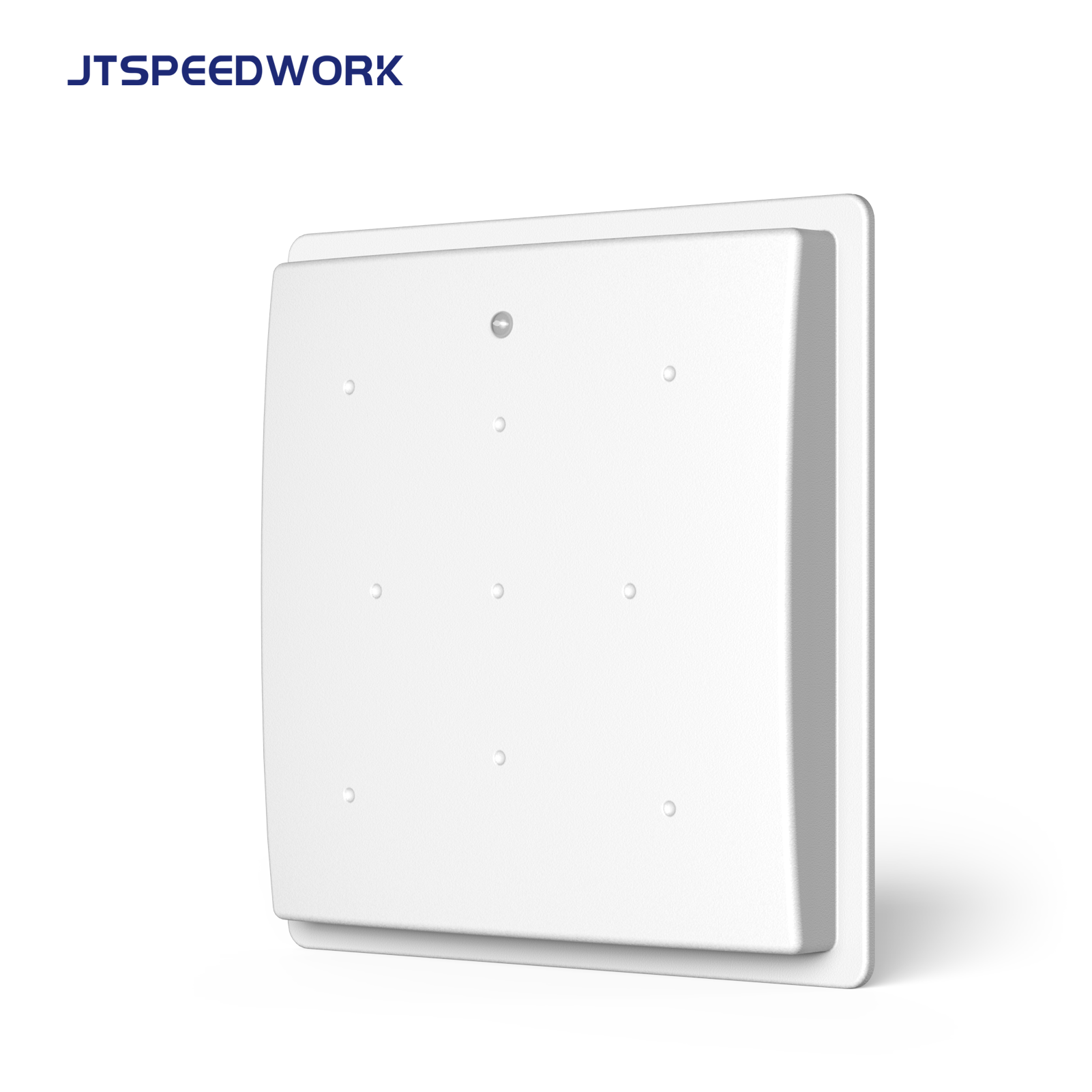

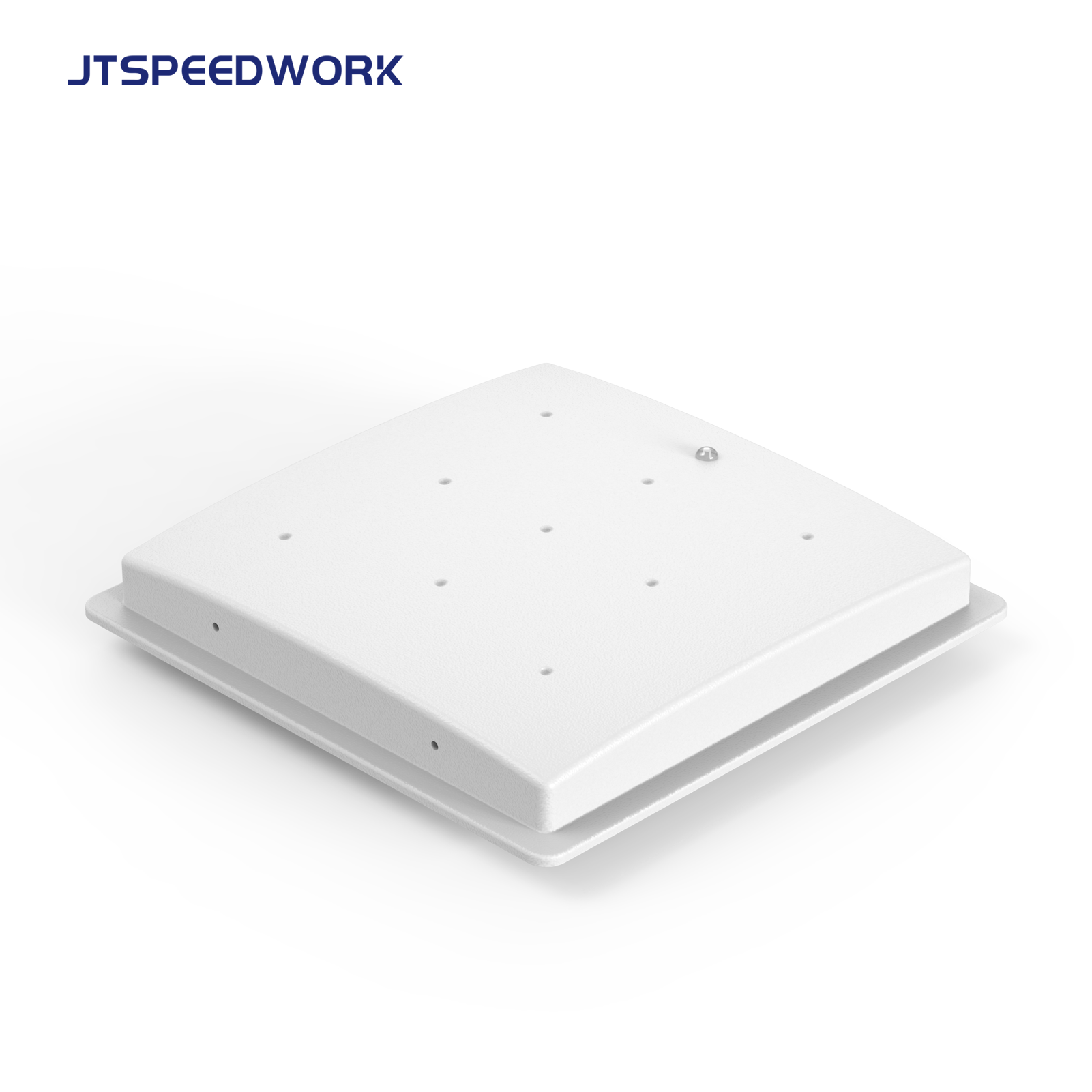

JTSPEEDWORK JT-8280A UHF RFID mid-range reader has 0-6m range, 8dBi antenna & ISO18000-6C support. With 6000V lightning protection, encryption, multi-interfaces, it fits ETC, parking, asset and customs management.
Item No :
JT-82820AColor :
WhiteAntenna gain :
8dBi LinearCommunication Interface :
RS232,RS485,WiegandProtocol :
ISO18000-6CWorking frequency :
EU:865-868 | US:902-928MHz
| Item No. | JT-8280A | |||
| Physical parameters | Antenna | |||

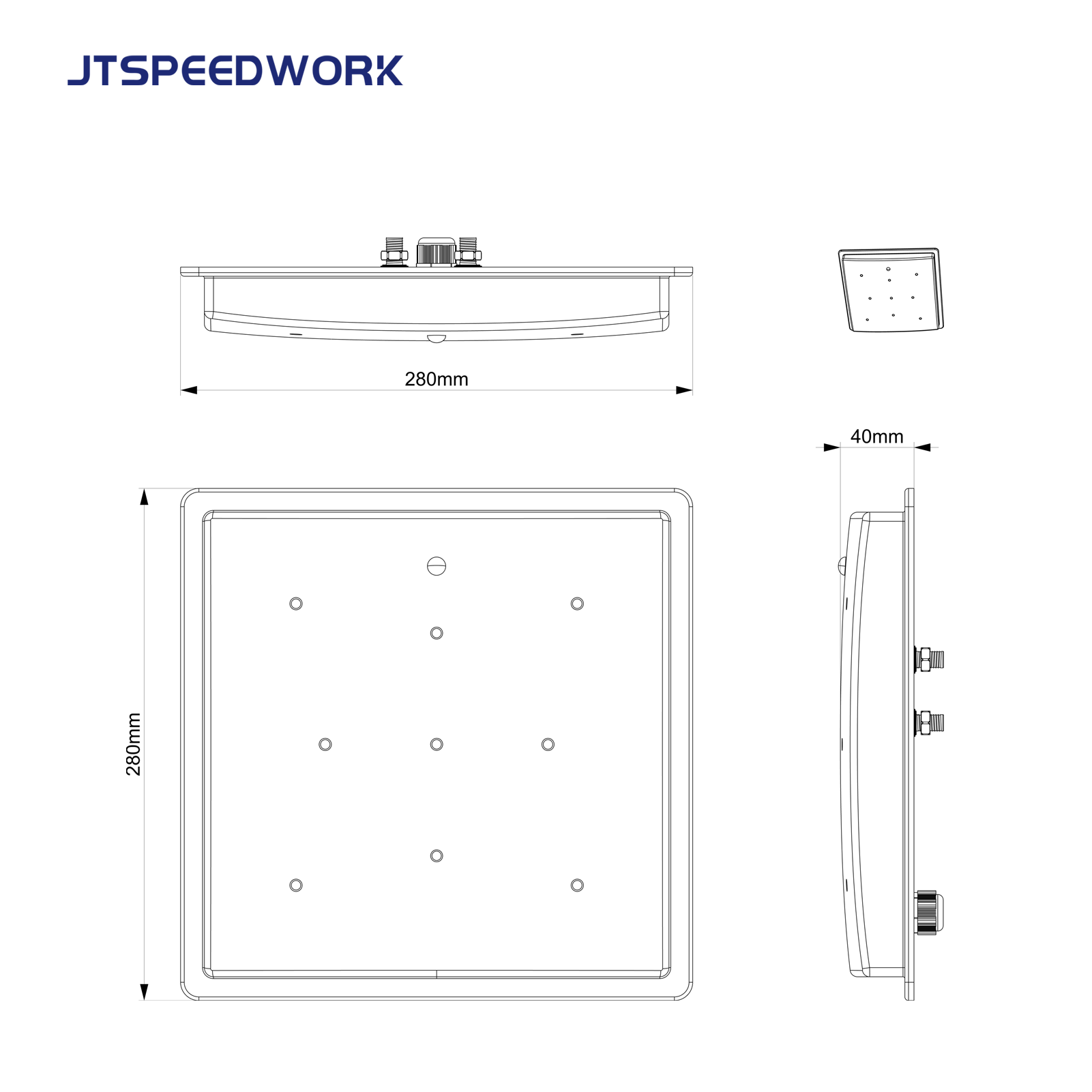

| Dimensions | 280(L)*280(W)*40(H)mm | 8dBi linear polarized antenna (built-in) | ||
| Net weight | 3Kg | |||
| Material | ABS & aluminum alloy | Power Supply | ||
| Input Voltage | DC 12-24V /3A | |||
| RFID parameters | Peak current | 500mA | ||
| Air Protocol | ||||
| EPC global Gen2(ISO18000-6C) | User Environment | |||
| Working frequency | Operating Temp. | -40 ℃ to 75 ℃ | ||
| EU:865-868 | US:902-928 MHz ( custom-design for frequency band ) | Storage Temp. | -40 ℃ to 85 ℃ | ||
| RF power | Humidity | 5-90% non-condensing (+25° C ) | ||
| 0~30 dBm(adjustable) | ||||
| Work mode | Reading Performance | |||
| Master-slave, timing,trigger mode | Reading distance | |||
| I/O | Up to 6m(relate to tag and environment) | |||
| 1 trigger input or 2 relay outputs (customized) | Model Type | |||
| Notification | JT-8280A | RS232,RS485,Wiegand | ||
| LED indicator,buzzer | ||||
| SDK | ||||
| C# , Java , C++ | ||||
