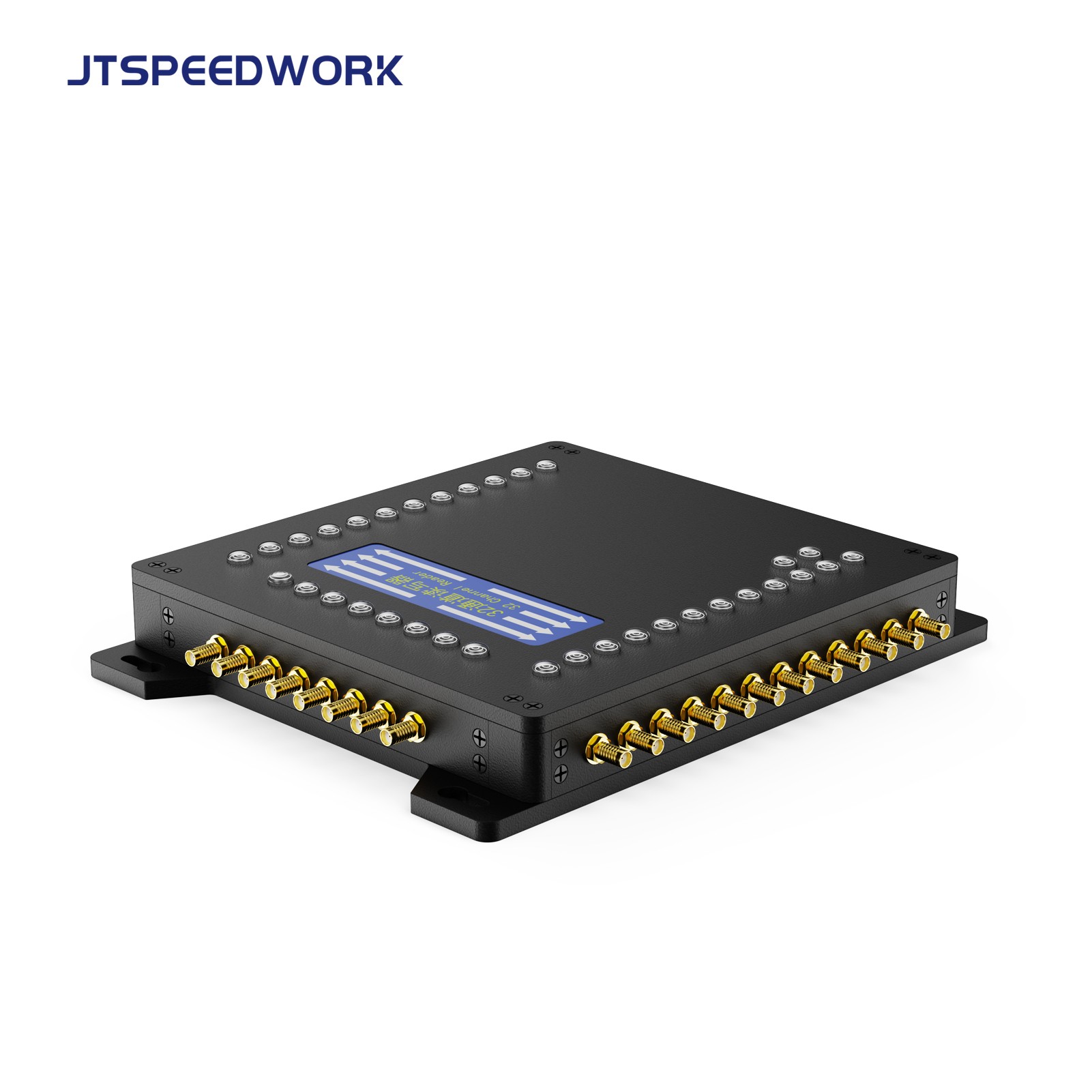

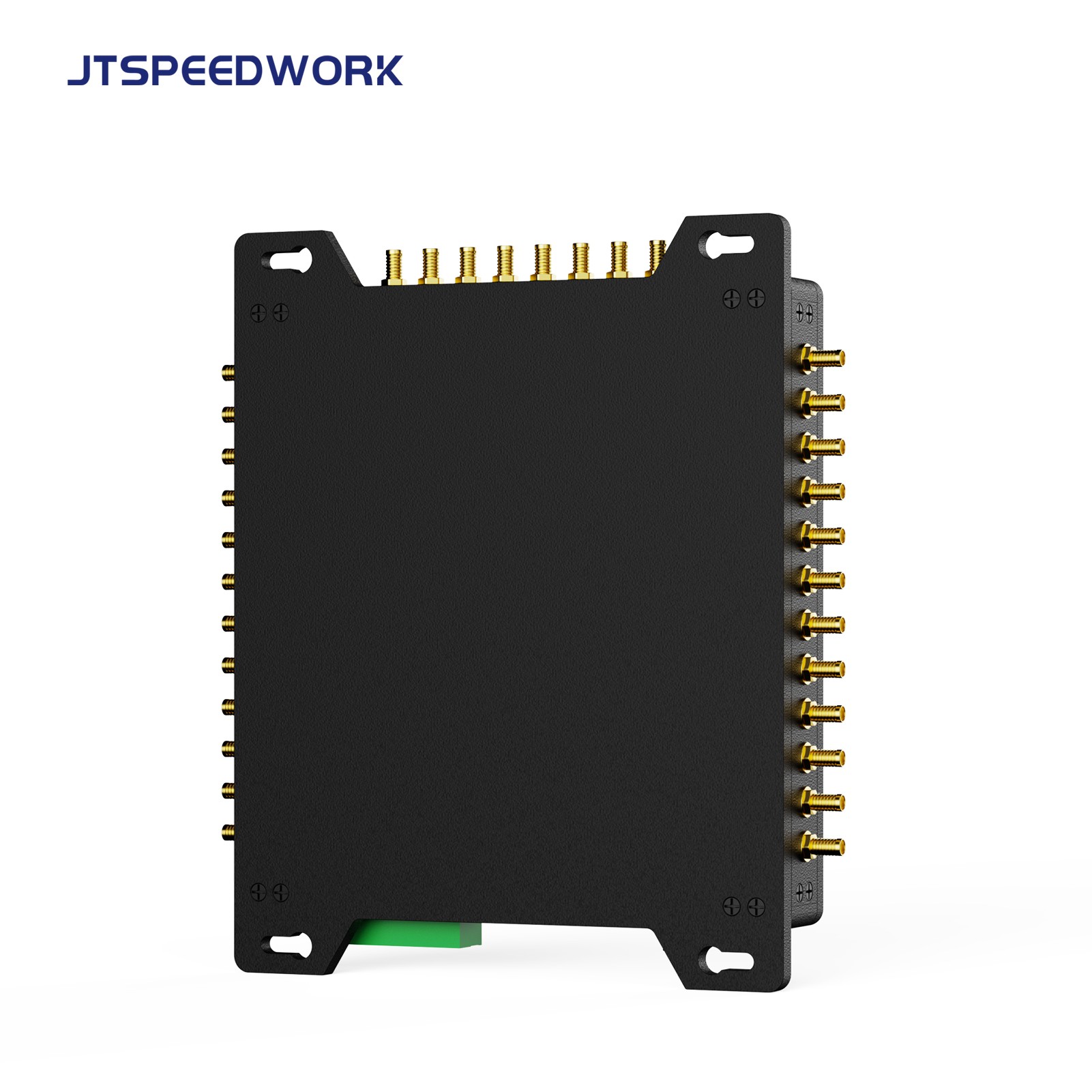

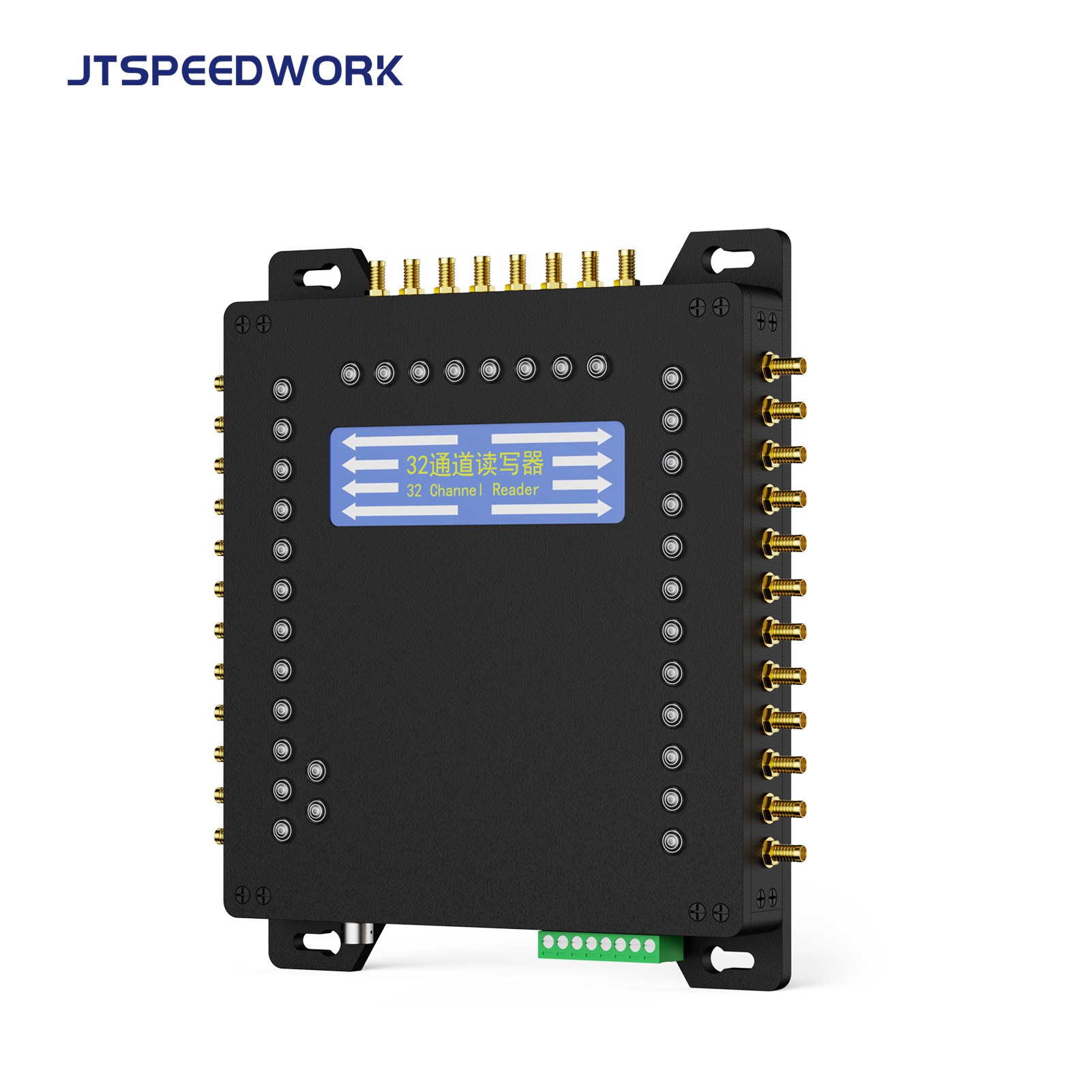

JT-932 32-Port UHF RFID Fixed Reader Impinj R2000 High Sensitivity ISO18000-6C
JTSPEEDWORK JT-932 UHF RFID fixed reader features 32 channels, Impinj R2000 chip & ISO18000-6C support. With high sensitivity, adjustable power and multi-development support, it fits logistics, warehousing and industrial management.
Item No :
JT-932Color :
BlackCommunication Interface :
RS232,TCP/IPProtocol :
ISO18000-6CWorking frequency :
860-960MHzRF chip :
Impinj R2000| Item No. | JT-932 | |||
| Physical parameters | Antenna | |||

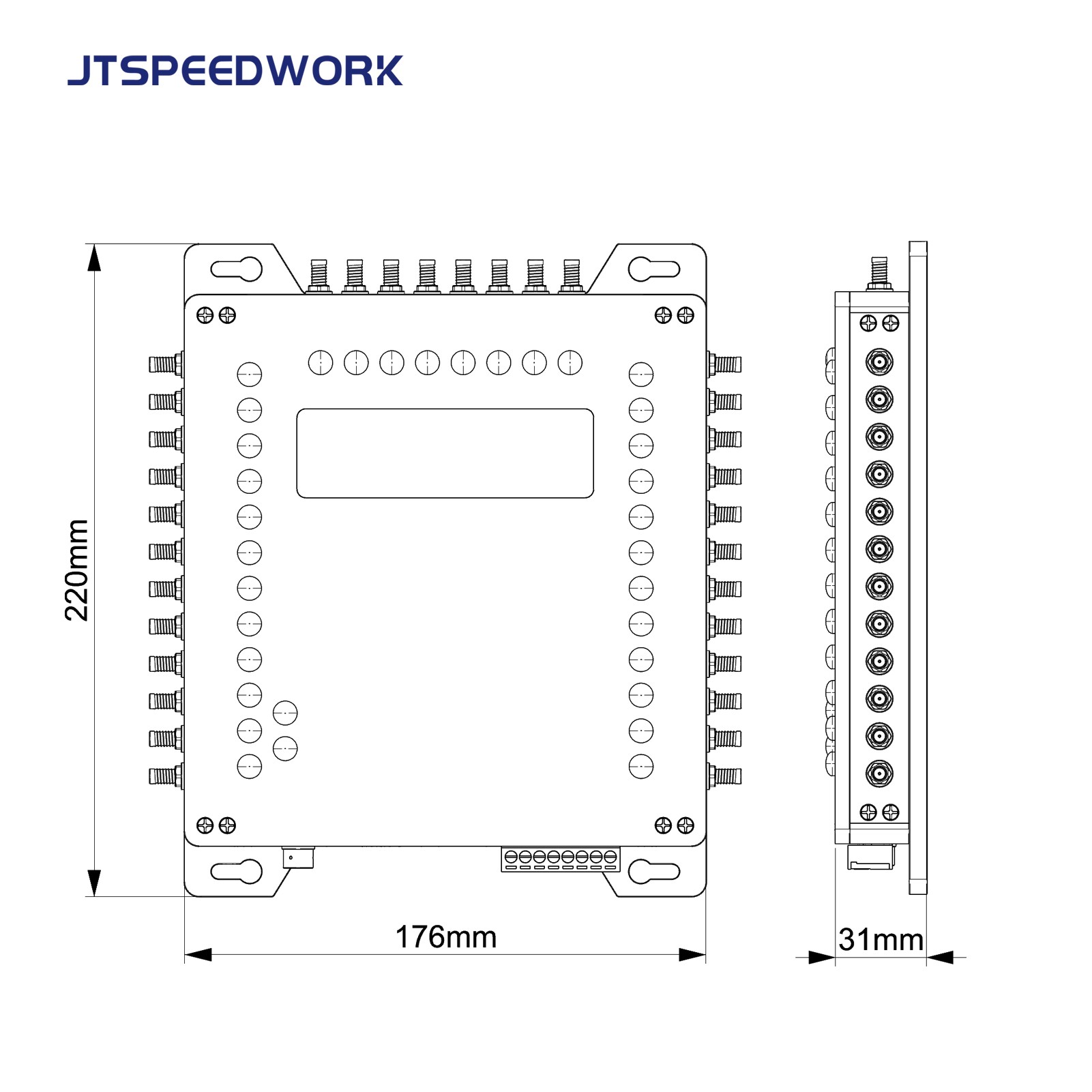

| Dimensions | 220(L) * 176(W) * 31(H)mm | 32 SMA female antenna connector | ||
| Net weight | 2KG | |||
| Material | Aluminum alloy | Power Supply | ||
| Operate voltage | DC9-24V/3A | |||
| RFID parameters | Consumption | 10W(@maximum output power 30dBm) | ||
| Air Protocol | ||||
| EPC global Gen2(ISO18000-6C) | User Environment | |||
| Working frequency | Operating Temp. | -20 ℃ to 75 ℃ | ||
| 860-960 MHz ( custom-design for frequency band ) | Storage Temp. | -30 ℃ to 80℃ | ||
| RFID chip | Humidity | 5-90% non-condensing (+25° C ) | ||
| Impinj R2000 | ||||
| RF power | Model Type | |||
| 0~33dBm (adjustable) | JT-932 | RS232,TCP/IP | ||
| Reading rate | ||||
| >700 times/sec | ||||
| RSSI | ||||
| Support | SDK | |||
| RS232 baud rate | C# , Java , C++ | |||
| 115200 bps (default) | ||||
| RJ45 baud rate | ||||
| 230400 bps (default) | ||||

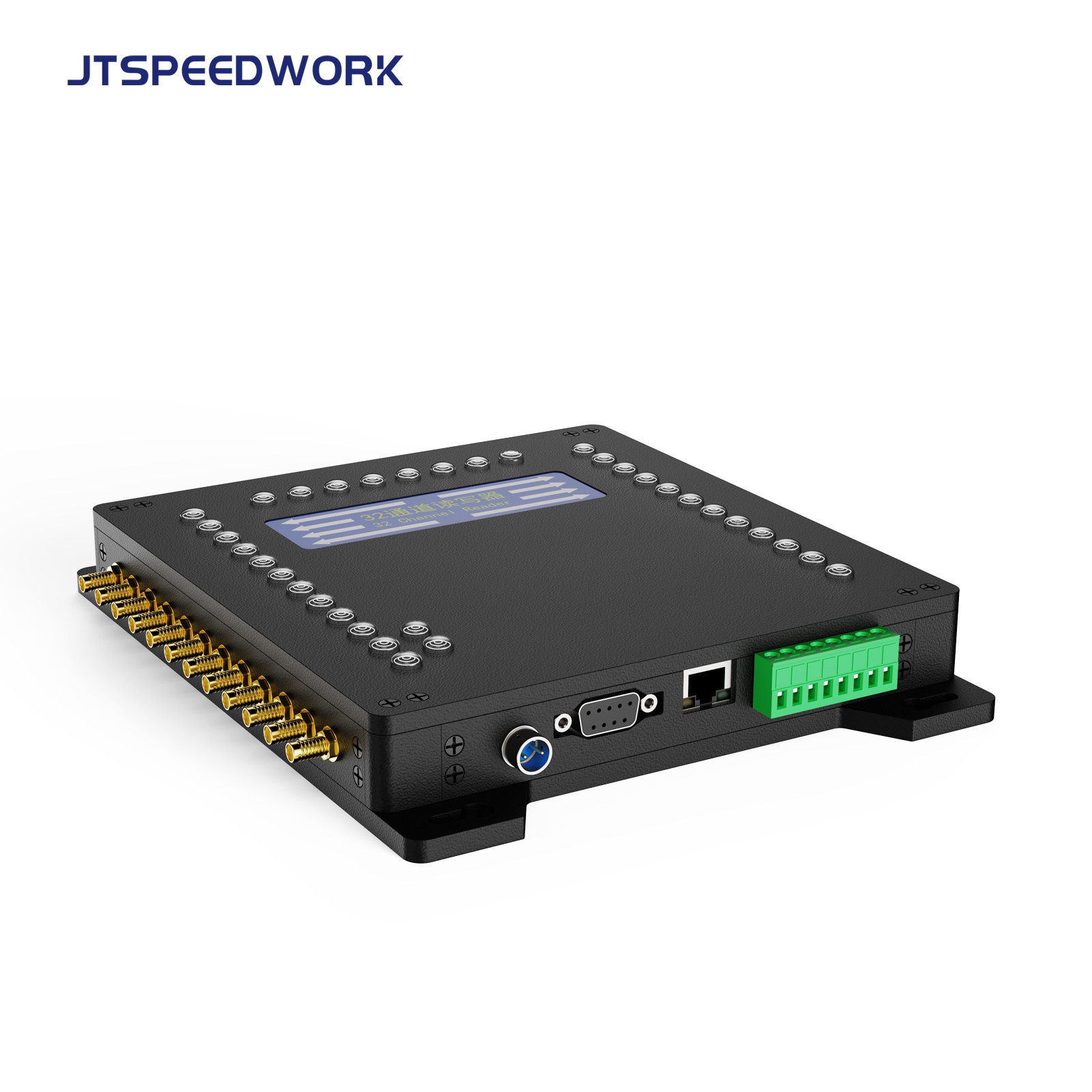

I/O Interface definition
|
No |
Name |
Description |
|
1 |
+12V |
+12V output |
|
2 |
GND |
GND ground |
|
3 |
IN1 |
Optical isolation input 1 |
|
4 |
IN2 |
Optical isolation input 2 |
|
5 |
NC1 |
Relay 1 is always open |
|
6 |
COM1 |
Relay 1 common |
|
7 |
NC2 |
Relay 2 normally open |
|
8 |
COM2 |
Relay 2 common |
