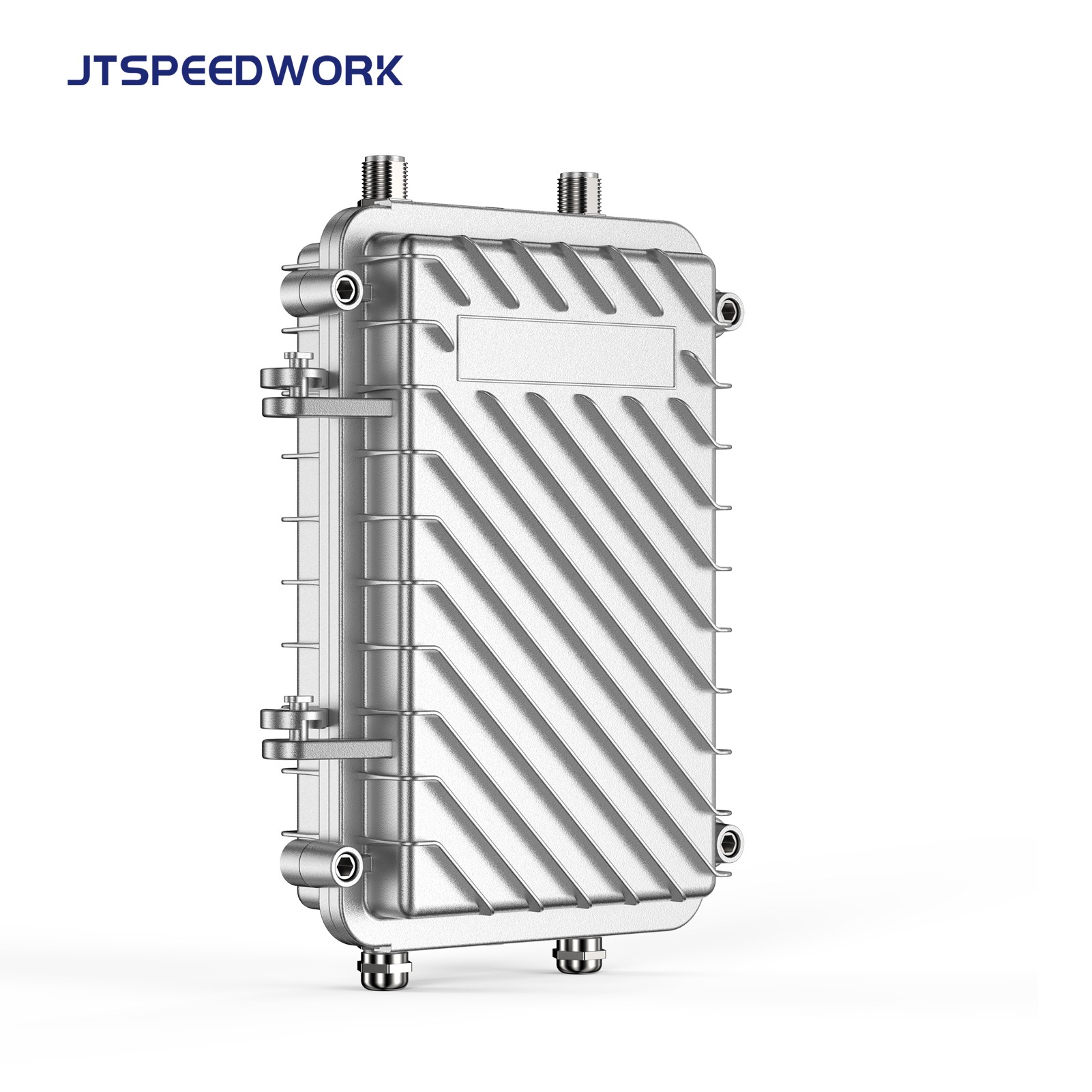

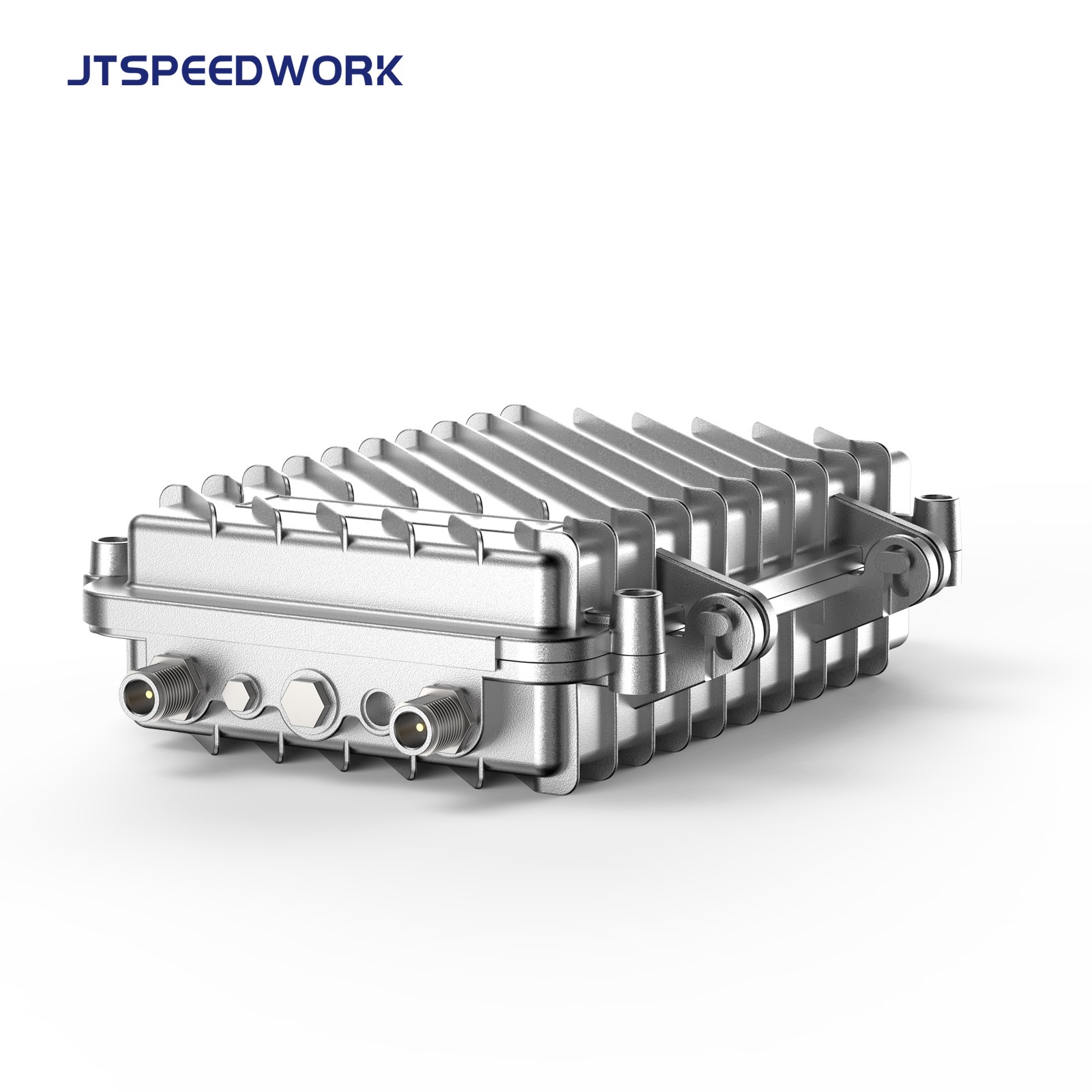

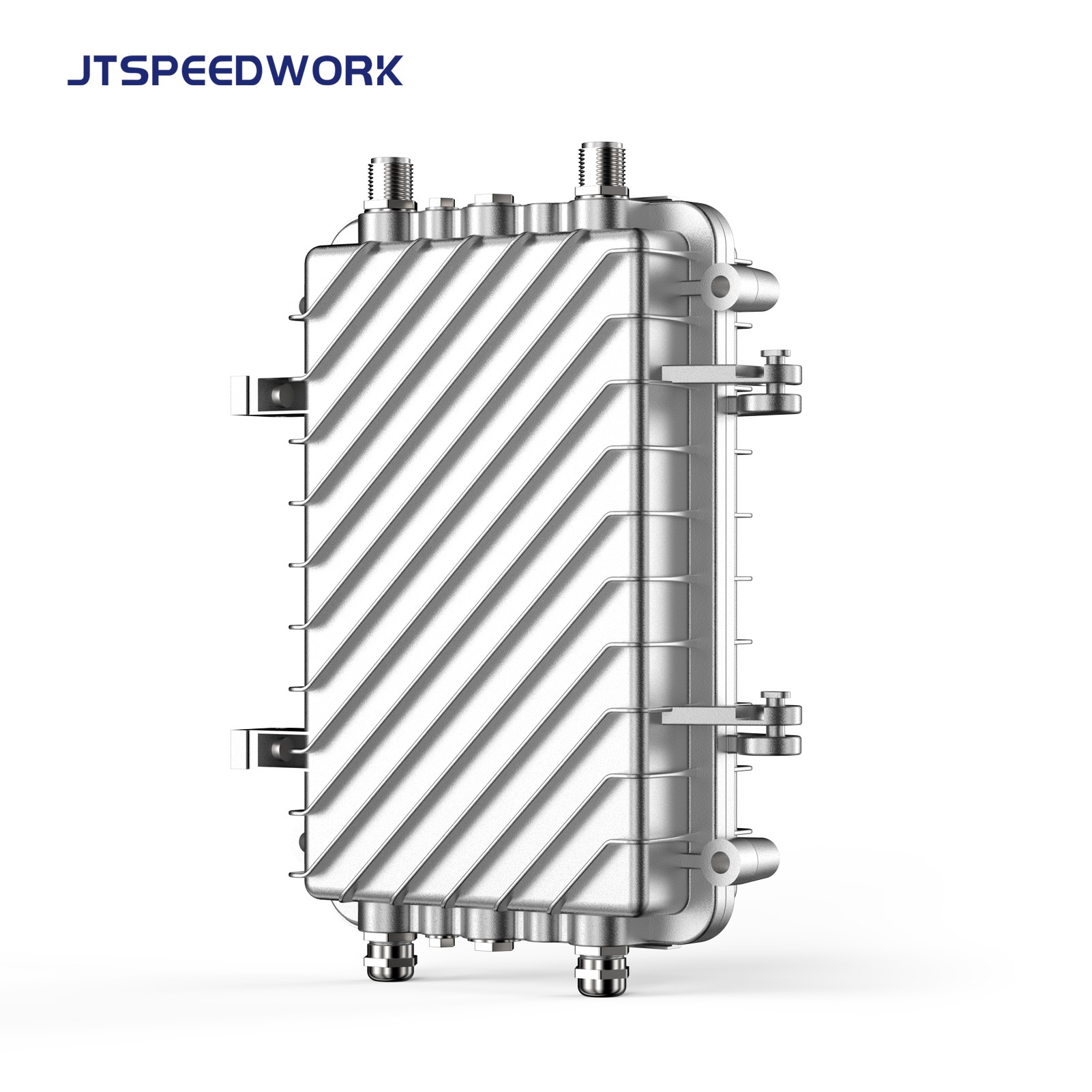

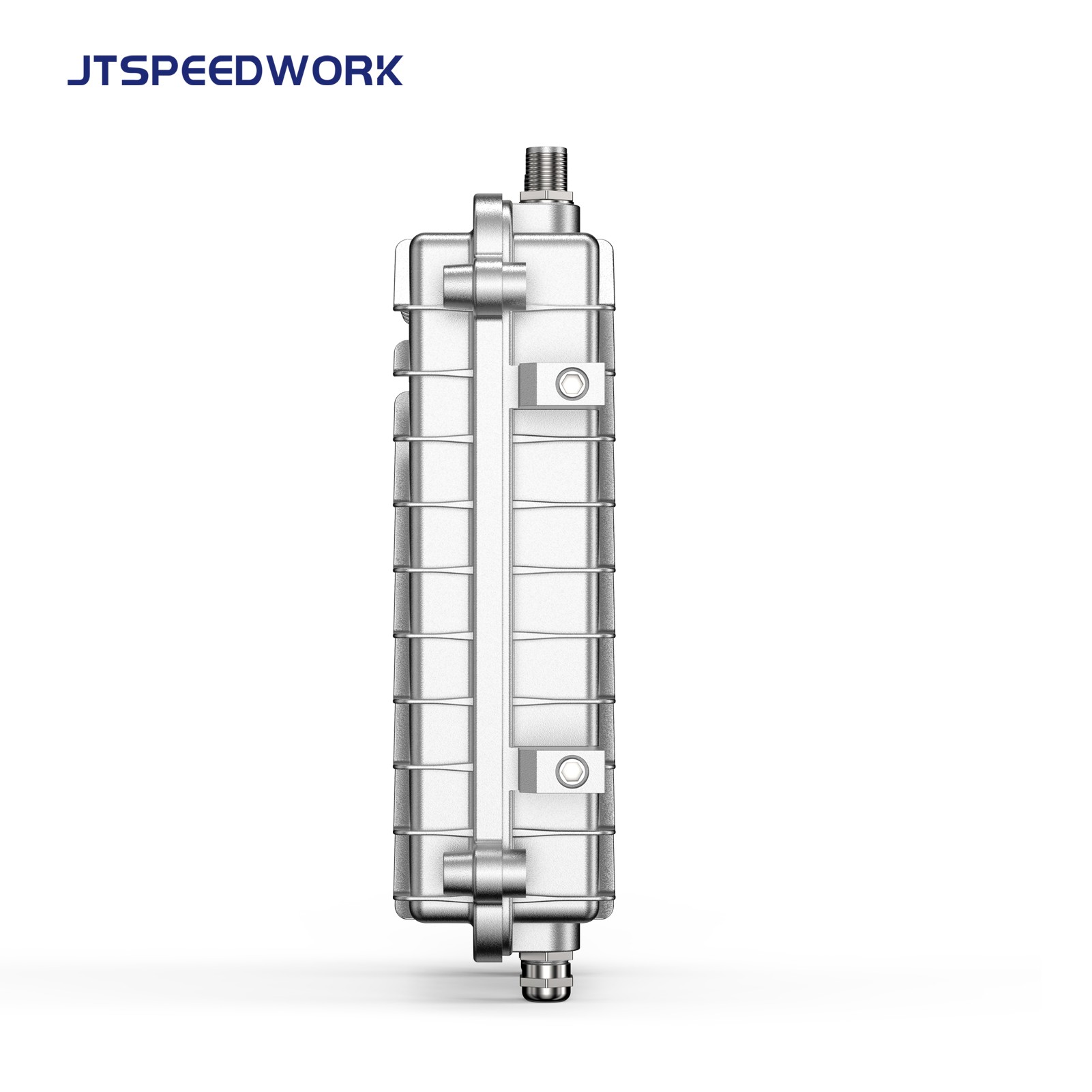

JT-R2430A 2.4GHz Active RFID Omnidirectional Reader Outdoor Waterproof
JT-R2430A is a self-developed high-performance 2.4G electronic tag fixed reader. With complete independent intellectual property rights, the reader's default working frequency band is 2.4GHz, with strong multi-tag recognition capabilities, long reading distance, high protection performance, and convenient installation and configuration.
Color :
white
JT-R2430A
2.4GHz RFID Outdoor Omnidirectional Active Reader
| Item No. | JT-R2430A | |||
| RFID parameters | RFID Performance Parameters | |||
| Frequency | 2.4GHz~2.45GHz | Communication rate | 1Mbpsdefault;2Mbpsoptional | |
| Protocol | ISO18000-4-2015 | Transmit power | 4dBm Max(adjustable) | |
| Recognition speed | 200km/h | Modulation | GFSK | |
| Identify direction | Omnidirectional | frequency deviation | 士170KHz@1Mbps Data Rate | |
| IP grade | IP 65 | Transmit power accuracy | ±4dB | |
| Communicate interface | RS232/RS485/RJ45;4G/WiFi (optional) | 1st Channel | -25dBc@1Mbps Data Rate | |
| 2.4G RFID antenna interface | 50 ohm N-type (Female) | Adjacent channel rejection ratio | ||
| 4G-LTE antenna interface | 50 ohm N-type (Female) | 2nd Channel | -50dBc@1Mbps Data Rate | |
| GNSS antenna interface | 50 ohm N-type (Female) | Receive sensitivity | -90dBm (1Mbps Data Rate SPEEDWORK tag packet protocol length 10-bytes, BER <<1E-04) |
|
| 2.4G WiFi antenna interface | 50ohm SMA | Receive carrier-to-noise ratio selectivity |
9dB （1Mbps Data Rate， Co-Channel Interference） | |
| Power supply | 10~60V (Optional POE power supply) | RSSI receiving accuracy | ±2dB | |
| Working current | 0.15A@12V,25℃ | Effective range of RSSI reception | -90~-20dBm | |
| I/O | 2-way trigger input | RSSI resolution | ±1dB | |
| 2-way relay output (optional) | Anti-collision tag reader | »200 (In Co-Channel mode,RS232,RS485,RJ45,WiFi, 4G tag reader,test site: open and unobstructed area |
||
| Secure Encryption | Supporting AES-128b/192b/256b | |||
| Reading distance | Up to 150m (Test Conditions: | |||
| 1. External 6dBi omnidirectional glue stick antenna； | ||||
| 2. Test with JT-T2450A | ||||
| 3. Test in an open field without obstacles | ||||
| GNSS | 4G-LTE | |||
| GPS L1 | 1575.42±1.023MHz | LTE FDD | B1, B3, B5, B8 | |
| GLONASS | 1597.5~1605.9MHz | LTE TDD | B34, B39, B40, B41 | |
| BDS | 1559.1~1563.1MHz | GSM/GPRS | 900/1800MHz | |
| Capture sensitivity | -147dBm | GPRS | Max 85.6Kbps（DL）/Max 85.6K bps（UL） | |
| Tracking sensitivity | -160dBm | LTE-FDD | Cat1，Max 10Mbps（DL）/Max 5Mbps（UL） | |
| Positioning accuracy | <3m (open environment) | LTE-TDD | Cat1，Max 8.96Mbps（DL）/Max 2Mbps（UL） | |
| Update frequency | <10Hz | GSM850 | 33dBm (Power Class 4) | |
| Noise figure | 3dB | EGSM900 | 33dBm (Power Class 4) | |
| DCS1800 | 30dBm (Power Class 1) | |||
| SDK (download link) | PCS1900 | 30dBm (Power Class 1) | ||
| Demo&C++,C#,JAVA,Android SDK | LTE | 23dBm (Power Class 3) | ||
| Datasheet (download link) | ||||
