JT-T2483 2.4GHz Active RFID Acousto-optic Tag with Light and Sound

JT-T2483 2.4GHz Active RFID Acousto-optic Tag with Light and Sound
JT-T2483 2.4GHz Active RFID Acousto-optic Tag with Light and Sound
JT-T2483 2.4GHz Active RFID Acousto-optic Tag with Light and Sound
JT-T2483 2.4GHz Active RFID Acousto-optic Tag with Light and Sound
JT-T2483 2.4GHz Active RFID Acousto-optic Tag with Light and Sound
JT-T2483 2.4GHz Active RFID Acousto-optic Tag with Light and Sound
JT-T2483 2.4GHz Active RFID Acousto-optic Tag with Light and Sound

JT-T2483 2.4GHz Active RFID Acousto-optic Tag with Light and Sound

  • Protocol :

    Private protocol
  • Working frequency :

    2.45GHz
Inquire Now

    JT-T2483 2.4G active acousto-optic tag, with complete independent intellectual property rights. Different from ordinary active tags, acousto-optic tags can respond to the control commands of the reader to realize functions such as tag reading, sound, and light prompts. A specific transceiver control mechanism is adopted to keep the tag in a low power consumption state. The tag can be recognized at a long distance, in a good visual environment, the recognition distance can stably reach 50 meters. When the tag communicates with the reader, the data is encrypted, and the relevant protocol must be in place to correctly analyze it, ensuring communication security. It is suitable for various applications such as equipment management, asset identification, object finding, inventory, vehicle management, etc.



Features:

☆ Support sound prompts

☆ Support light prompt, red, green, blue three colors
☆ Replaceable battery
☆ Low power consumption, average working current 10μA
☆ Security: encryption algorithm and authentication to ensure data security and durability
☆ Reading distance: 0-50 meters
☆ High security anti-interference technology



Working frequency  2.4 GHz~2.45 GHz
Protocol Private
Receive sensitivity -87dbm
Data rate 1Mbps
Modulation GFSK
RF power 7dBm
Identification method Active launch\360°omnidirectional
Reading rate 120 km/h
High security anti-interference Two-way communication technology, encrypted computing and authentication
Reading range 0~50m(relate to reader and enviroment)
Indicator color Red,green,blue
Sound level 87dB@10cm
Battery CR2450(550mAh)/CR2477(1000mAh) replaceable
Working Voltage DC 3V
2.4G emission current 25mA@4dbm
Stand by current ≤45μA
Working Temp. -10℃~+50℃
Storage Temp. -20℃~+60℃
Storage humidity 5%~95%RH no condensation
Shell material ABS

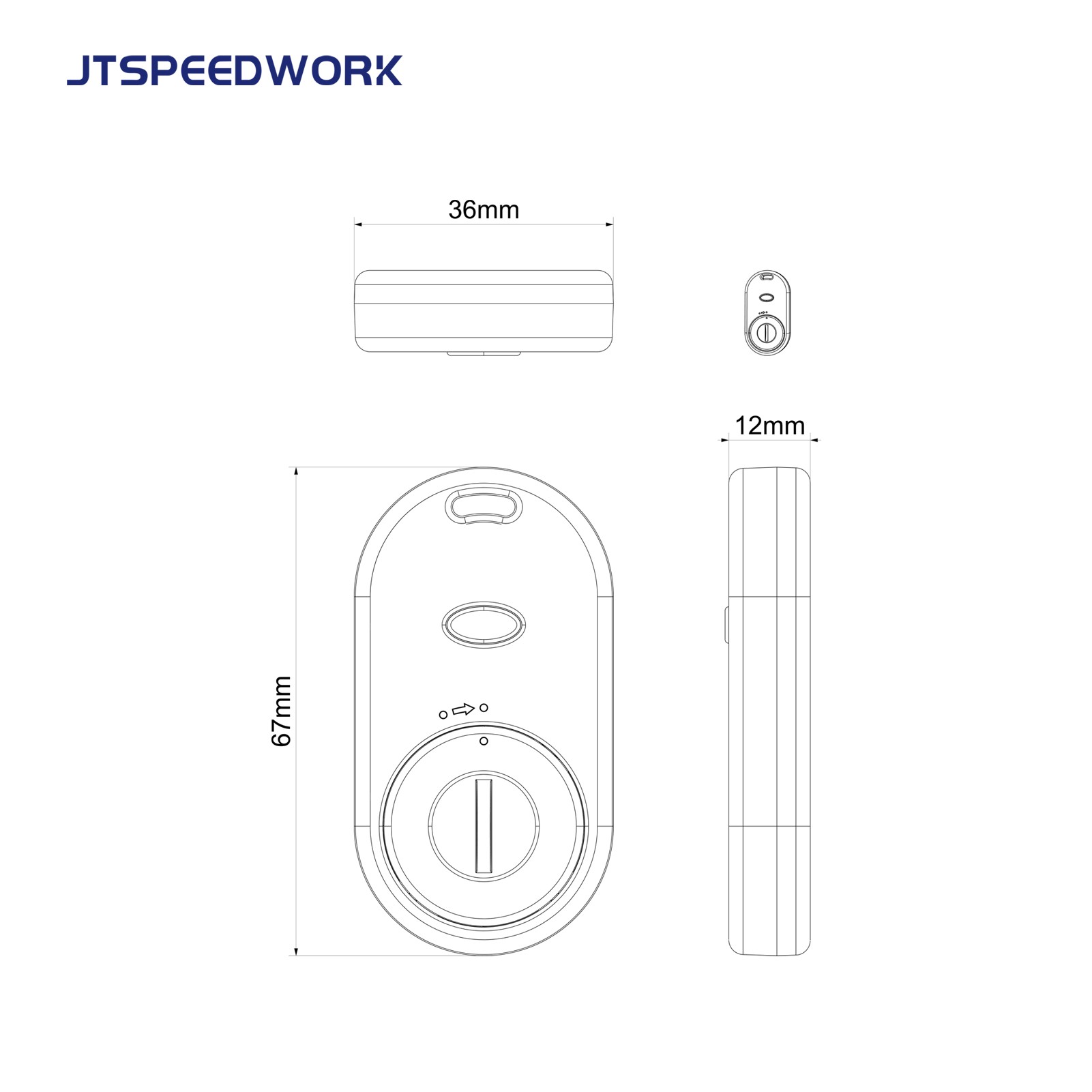

Dimension 65.5*35*10.5mm
Weight About 17g
Installation Hang buckle
